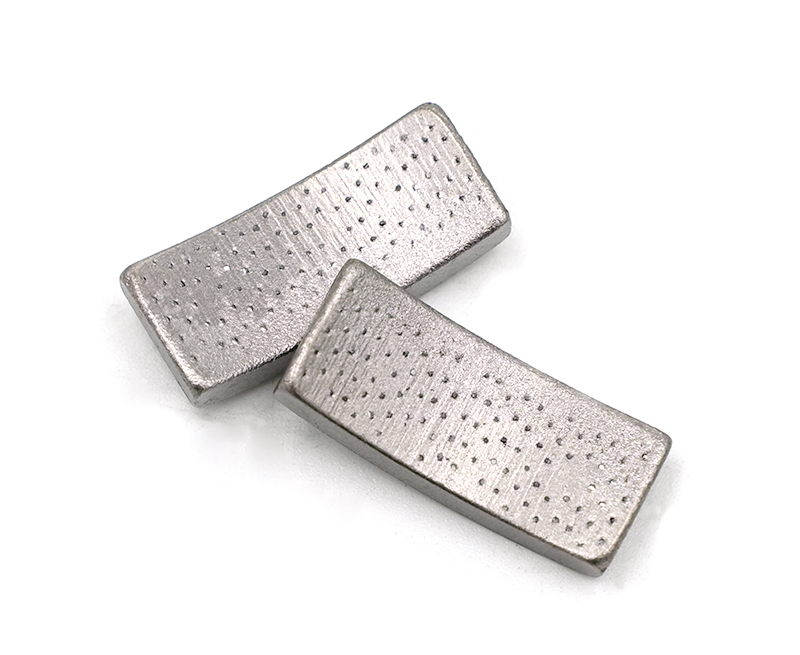

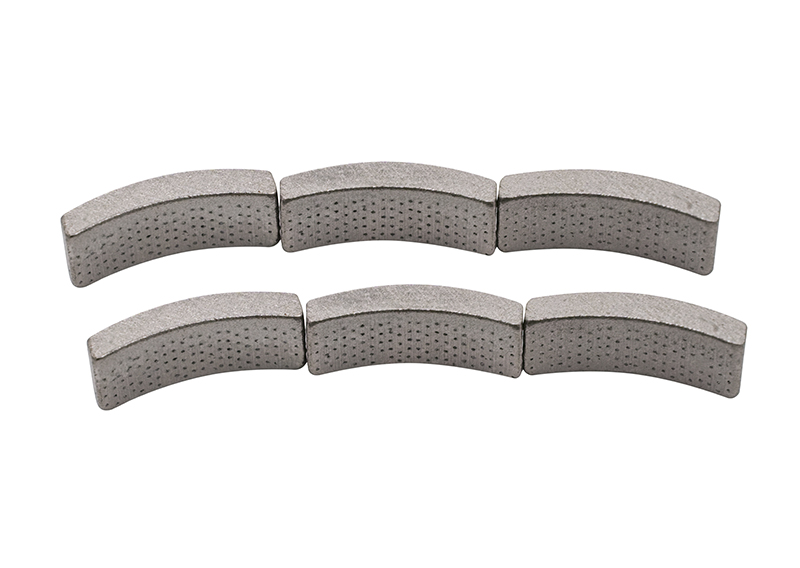

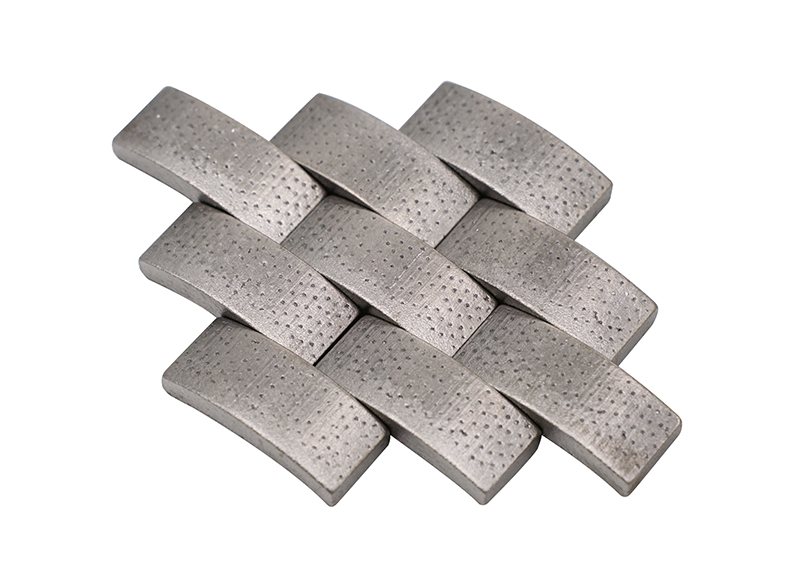

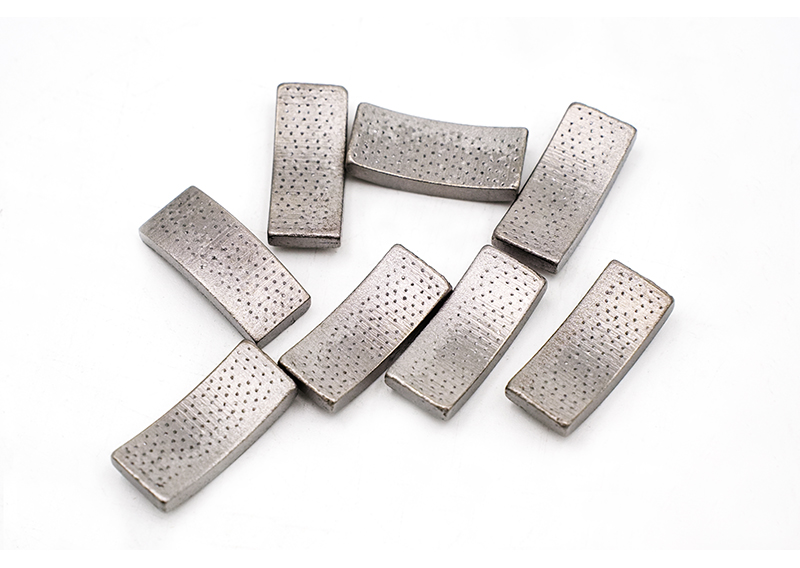

H.E.D Diamond Core Drill Bit Segment

Laser welding diamond core drill, using HUADA Even Distribution technology,
high efficiency, long life, suitable for various concrete, asphalt, hard bricks and other hard materials

Diameter
(mm)
Segment length
mm（L)
Segment width
mm (W)
Segment height
mm (H)
52 24 3.5 8+2
62 24 3.5 8+2
102 24 4 8+2
122 24 4 8+2
152 24 4.5 8+2
182 24 4.5 8+2
220 24 4.5 8+2
250 24 4.5 8+2
300 24 5 8+2
350 24 5 8+2

The thickness and curvature of the drill bit can be customized according to customer requirements.
8+2: The total height of segment is 10mm, welding layer is 2mm.
