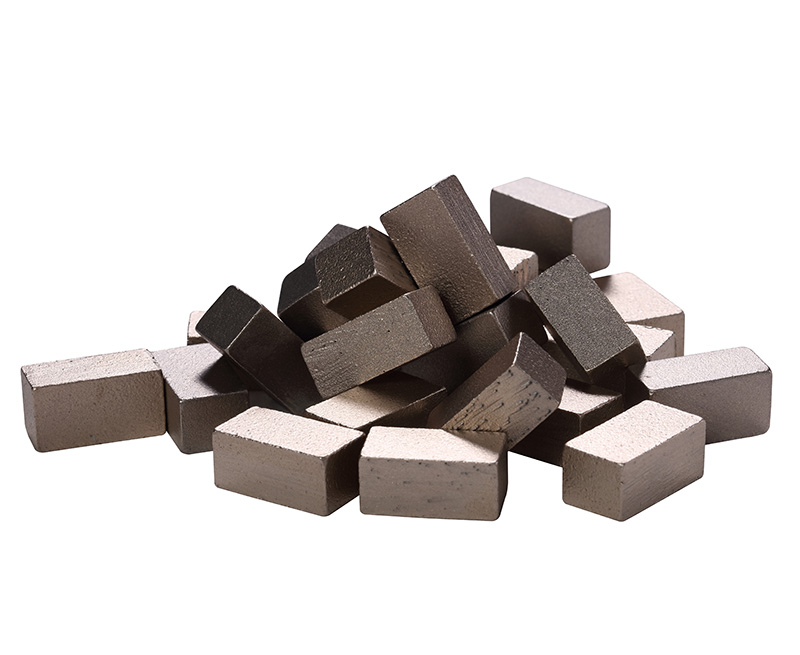

Single Blade & Segment For Marble

Circular diamond blades for use on all types of bridge saws and big blade machines for cutting marble and other soft stones. All diamond blades are developed based on the characteristics of the stone and customers’ requests to guarantee the highest cutting eficiency.
Diameter (mm) Segment dimension  (mm) Segment No.
L W H
900 24 6.5-7.0 10/12 64
1000 24 7.0-7.5 10/12 70
1200 24 8.0 10/12 80
1300 24 8.5 10/12 88
1350 24 8.5 10/12 88
1400 24 9.0 10/12 96
1600 24 10.0 10/12 104/108
1800 24 10.0 10/12 120
2000 24 11.0 10/12 128
