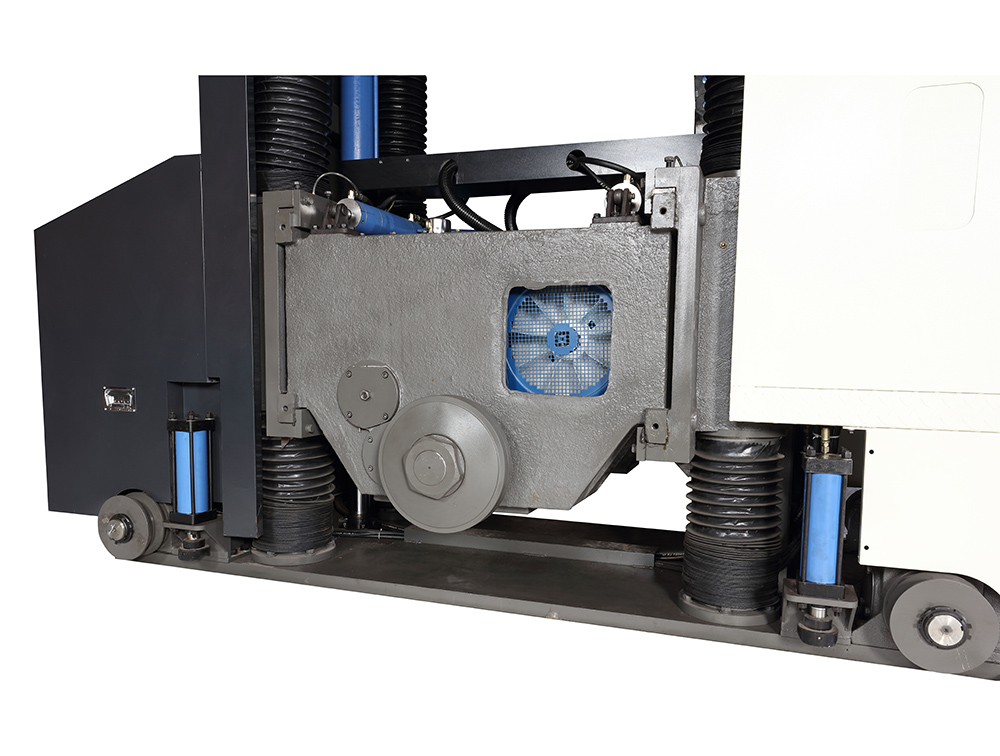

● With belt drive design, the motor and gear drive system are not easily damaged.
● The four guide pillars are enclosed and protected, and the stronger guide pillars are supplemented by chrome plating and fine grinding processes to ensure the stability and accuracy of the whole machine structure.
● The two drives adopt double chain transmission to improve safety. Four-wheel drive adopts closed modular design, simple maintenance and high reliability.
● Brand electronic control components and electronic control systems are designed for the quarrying environment, adapting to the harsh working conditions of low voltage, dust and humidity.

oduct line	DBM1360-1900/GV	DBM1500-2100/GV	DBM1950-2450/GV	DBM2600-3100/GV
Blade diameter (mm)	φ2400*2-φ3600*2	φ2400*2-φ3600*2	φ2200*2-φ4200*2	φ2200*2-φ4200*2
Cut width (mm)	1360-1900	1500-2100	1950-2450	2600-3100
Max. cut depth (mm)	1550	1550	1850	1850
Main motor power (kW)	75*2	75*2	75*2	75*2
Total power (kW)	158	158	158	158
Water consumption (m³/h)	5	5	5	5
Track spacing (mm)	1140	1290	1670	2200
Machine dimensions (mm)	4150*1540*3100	4150*1680*3100	4800*2140*3100	4800*2800*3100
Total weight (kg)	8500	8800	11000	12000
