Diamond Wire For Marble Quarry

Diamond wire is widely used in stone quarrying. It greatly improves safety, speed of production and yield while reducing the waste of resources.

In marble quarries, three different types of assembly can be used in combination with a variations of beads per meter to adapt to the materials and quarrying techniques. ln certain conditions dry cutting is also available.

All wires are developed based on the characteristics of the stone samples provided by customers for highest cutting efficiency.

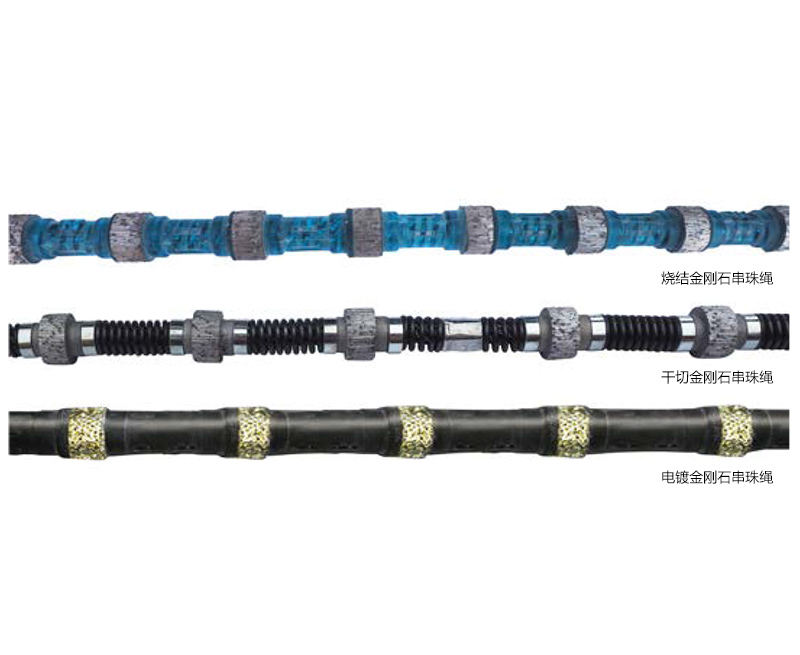

Sintered diamond wire
Diameter (mm) Beads/m Assembly Hardness of stone Wire speed (m/s) Cutting speed (m²/h) Production (m²/m)
37kW 55/75kW
Φ10.5 33/37/40 Spring
Rubber+ Spring
Plastic+ Spring
Soft 35-50 10-18 20-30 40-80
Φ11 Medium 35-45 7-15 15-20 25-60
Φ11.5 Hard 35-45 5-10 10-15 20-30

Dry cutting diamond wire
Diameter (mm) Beads/m Assembly Hardness of stone Wire speed (m/s) Cutting speed (m²/h) Production (m²/m)
37kW 55/75kW
Φ11 28/31/33 Spring Soft-Medium 35-45 8-20 12-30 15-60
Φ11.5

Electroplated diamond wire
Diameter (mm) Beads/m Assembly Hardness of stone Wire speed (m/s) Cutting speed (m²/h) Production (m²/m)
37kW 55/75kW
Φ10.5 28/31/33 Spring
Rubber+ Spring
Soft-Medium 35-45 10-16 16-25 15-30
Φ11
