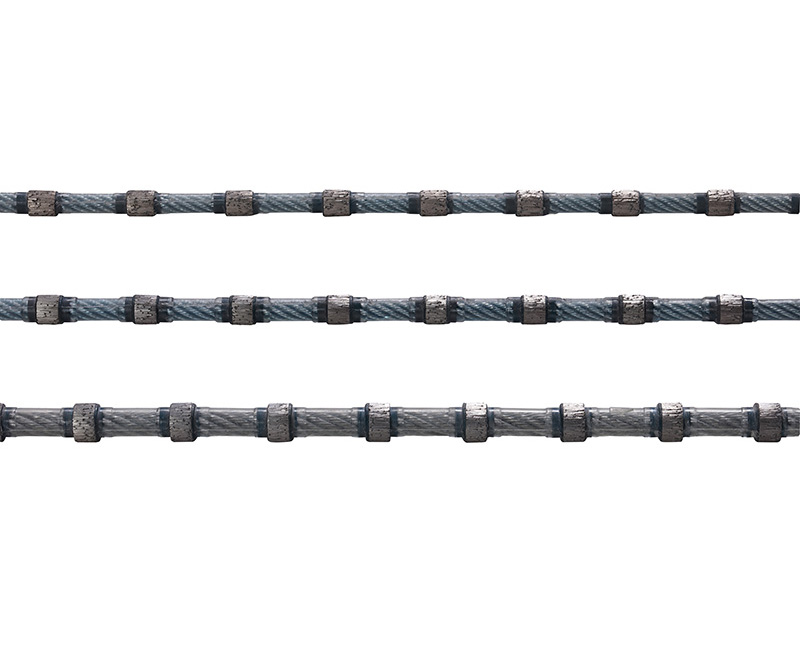

Diamond Wire For Squaring & Profiling

Diamond wire is widely used in the processing of stone blocks. For squaring, cutting slabs, profiling and other applications. Many different combinations of assembly, diameter and beads per meter can be used to match the specific applications.
All wires are developed based on the characteristics of the machines, materials and type of use provided by customers for highest cutting efficiency.
Material Diameter (mm) Beads/m Assembly Hardness of stone Wire speed (m/s) Cutting speed (m²/h)
Granite Φ11
Φ10.5
Φ9.0
Φ8.5
35/37/40 Plastic
Plastic+Spring
Rubber
Rubber+Spring
Soft 28-30 1.2-1.8
Medium 28-30 0.8-1.2
Hard 26-30 0.4-0.6
Marble Φ11
Φ10.5
Φ9.0
Φ8.5
33/37 Soft 30-40 3-4
Limestone Medium 30-40 2-3
Slate Hard 26-35 1-2
