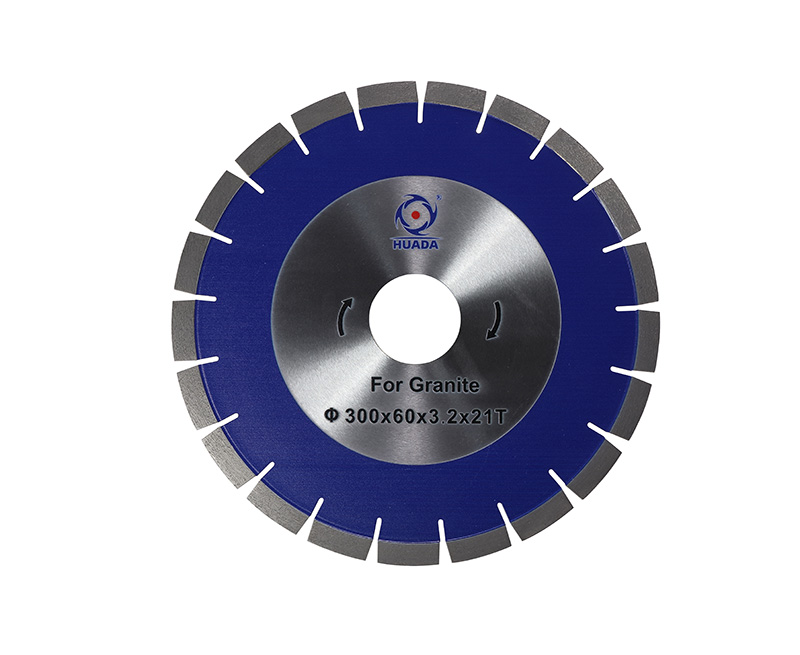

Bridge Saw Blade For Granite

A full selection of circular diamond blades for use on all types of bridge saws and small cutter machines for cutting granite slabs. All sizes available in both silent and regular core. All diamond blades are developed based on the characteristics of the granite and customers’ requests to guarantee the highest cuting efficiency.
Diameter (mm) Segment dimension (mm) Segment No. Bore (mm) Core
L W H Silent Regular
250 40 3.0 10/12/15 17 50/60
300 40 3.0 10/12/15/20 21 50/60
350 40 3.0/3.2 10/12/15/20 24/25 50/60
400 40 3.0/3.6 10/12/15/20 28 50/60
450 40 3.8/4.0 10/12/15/20 32 50/60
500 40 4.0 10/12/15/20 36 50/60
600 40 4.6 10/12/15/20 42 50/60
700 40 5.0 10/12/15/20 50 50/60
800 40 5.5 10/12/15/20 46 50/60
